The HOYER HMC3 315L1-4 AC motor has a rated power of 160.0 kW and operates at a speed of 1490 rpm under 400 V.
The rated current Iₙ is 265 A, with a starting current of 7.80 × Iₙ = 2067 A.
Efficiency reaches 95.8–96.1% at full and ¾ load, and the power factor is 0.92.
The rated torque Tₙ is 1020 N·m, starting torque 2.26 × Tₙ, and maximum torque 2.70 × Tₙ.
Rotor moment of inertia — 4.59650 kg·m².
Motor weight — 1115 kg.
The motor offers excellent energy efficiency, high power density, and stable operation for continuous heavy-duty industrial applications.

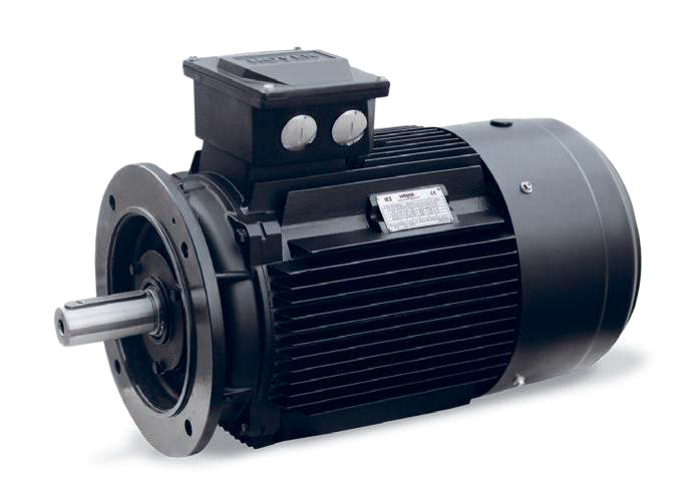

AC electric motor
HOYER HMC3 315L1-4; 160 kW, 50 Hz, 1500 rpm
Item code: HMC3315L1-4
| Manufacturer: |
|
|---|---|
| Brand country: |
Denmark
|
| Country of origin: |
Denmark
|
| Weight: | 1115 kg |
| Maximum rotation speed, rpm | 1480 |
| Rated power, kW | 160 |
| Body material | Cast Iron |
| Rated current Iₙ, A | 265 |
| Starting current Iₛ / Iₙ, A | 2067 |
| Efficiency at full load, % | 96 |
| Rated torque Tₙ, Nm | 1020 |
| Rotor moment of inertia, kg·m² | 4,5965 |
