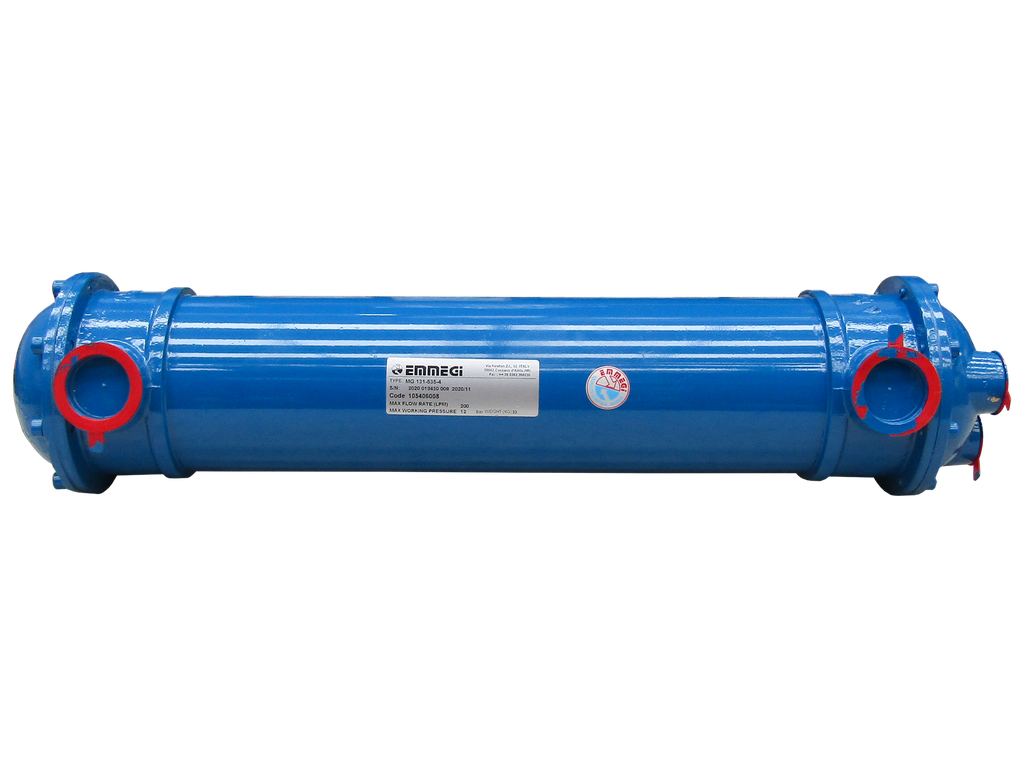

Oil-water heat exchanger Emmegi MG 131-535-4

Item code: 105406008
Oil-water heat exchanger Emmegi MG 131-535-4
The water circuit consists of 4 loops.
Manufacturer:
Brand country:
Italy
Country of origin:
Italy
Series MG 131
Body material Fe510.2
Country of origin Italy
Series MG 131
Heat dissipation at ΔT = 40°C, (kW) 47
Ports, cooled fluid 1"' BSP
Ports, cooling fluid 1 1/2'' BSP
Cooler cavity volume (L) 4,5
Weight (kg) 23
Width·Height·Depth (mm) 723x164x164
Material of inner tubes CuDHP
Maximum operating pressure (bar) 12
Max. flow (L/min) 200
Price 1 750.00 $
Available
Description

Water-oil heat exchangers of the MG series are used for cooling hydraulic circuits and are usually installed on return lines. They provide high efficiency and reliability thanks to high-quality materials and precise manufacturing. Main application areas include:

• Hydraulic installations
• Food processing machines
• Marine installations
• Industrial machinery
• Machine tools
• Compressors
• Generators

These heat exchangers are especially suitable where a reliable water or glycol circuit is available, and in cases where oil cannot be cooled by air due to contamination or abrasiveness. They are also ideal for environments with strict noise requirements.
