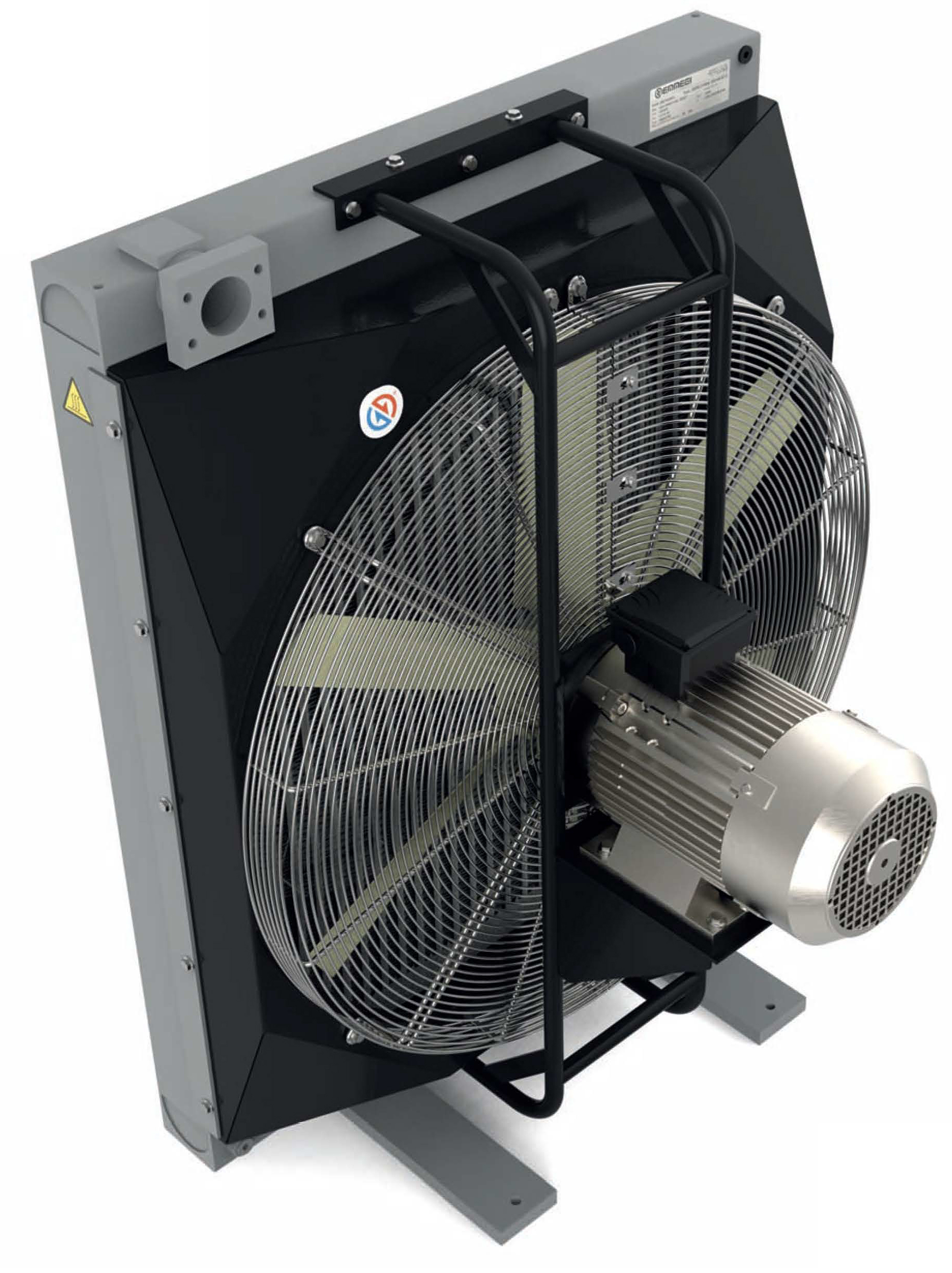

Air-oil heat exchanger Emmegi HPA135, 230/400V, 50Hz

Item code: A03280A400B1
Air-oil heat exchanger Emmegi HPA135, 230/400V, 50Hz
всасывающий, без термостата
Manufacturer:
Brand country:
Italy
Country of origin:
Italy
Series HPA Larger
Country of origin Italy
Series HPA Larger
Heat dissipation at ΔT = 40°C, (kW) 132
Ports, cooled fluid SAE 3''
Cooler cavity volume (L) 26
Weight (kg) 126
Width·Height·Depth (mm) 1008x1325x706
Cooling core material Aluminum
Maximum operating pressure (bar) 20 bar
Max. flow (L/min) 800
Fan drive type 230/400V
Fan speed (rpm) 1000
Fan motor power (kW) 3
Expected
Description

The HPA Larger series heat exchangers are designed for heavy-duty applications, meeting the most demanding requirements in terms of flow rates and heat dissipation power. Built with robust components, they guarantee long service life and reliability. Most models are equipped with AC industrial electric motors, but hydraulically driven versions are also available.

With a wide range of configurations, the HPA Larger series offers the ideal cooling solution for industrial applications such as:
• Stationary cranes
• Recycling plants
• Hydraulic systems
• Machine tools
• Others on request
