| Manufacturer: |
|
|---|---|
| Brand country: |
Italy
|
| Country of origin: |
Italy
|
| Series | HPA |
| Country of origin | Italy |
| Series | HPA |
| Heat dissipation at ΔT = 40°C, (kW) | 36 |
| Ports, cooled fluid | 1 1/4'' BSP |
| Cooler cavity volume (L) | 9,4 |
| Weight (kg) | 50 |

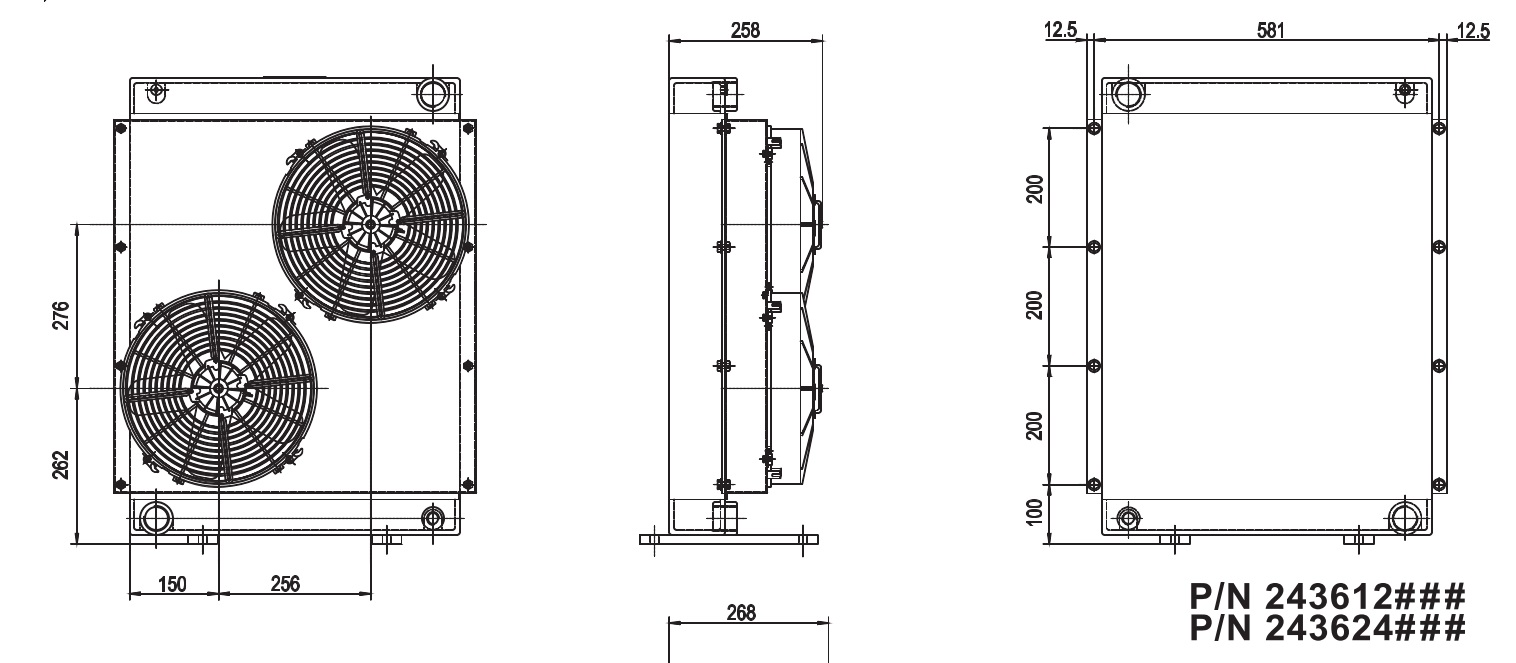

| Width·Height·Depth (mm) | 610x770x258 |
| Cooling core material | Aluminum |
| Maximum operating pressure (bar) | 20 bar |
| Max. flow (L/min) | 300 |
| Fan drive type | 24V DC |
| Fan speed (rpm) | 3000 |
| Fan motor power (kW) | 0,2 |
The HPA series heat exchangers are a versatile cooling solution for a wide variety of applications — from agriculture and forestry to construction machinery, municipal vehicles, industrial and mobile equipment. With a wide range of configurations, the HPA series adapts to specific needs, whether it is for hydraulic systems, machine tools, or recycling plants.
Performance:
• Operating pressure: up to 20 bar (static)
• Test pressure: 35 bar
• Maximum working temperature: 120 °C
