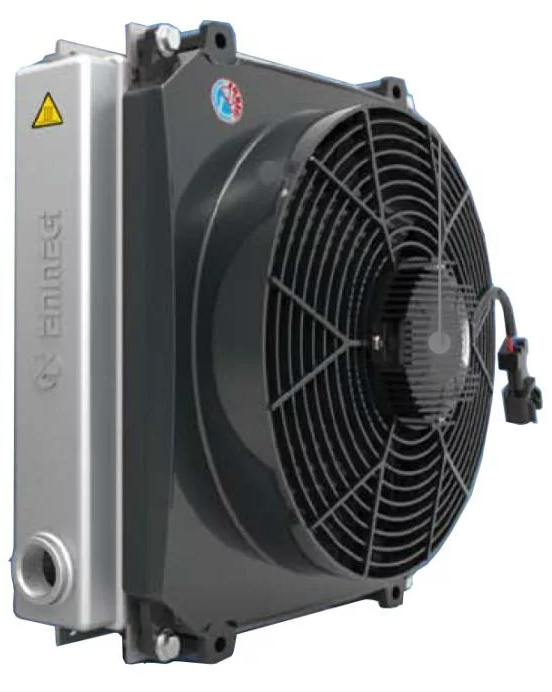

Air-oil heat exchanger Emmegi Mobile S4, 24V DC

Item code: 2MS424001
Air-oil heat exchanger Emmegi Mobile S4, 24V DC
всасывающий, без термостата
Manufacturer:
Brand country:
Italy
Country of origin:
Italy
Series MOBILE
Country of origin Italy
Series MOBILE
Heat dissipation at ΔT = 40°C, (kW) 17,6
Ports, cooled fluid 1/2'' BSP
Cooler cavity volume (L) 2,7
Weight (kg) 16,5
Width·Height·Depth (mm) 540x511x188
Cooling core material Aluminum
Maximum operating pressure (bar) 20 bar
Max. flow (L/min) 300
Fan drive type 24V DC
Fan speed (rpm) 2390
Fan motor power (kW) 0,19
Price 1 690.00 $
Available
Description

The Mobile series heat exchangers are a reliable cooling solution for mobile equipment, where compact design and high efficiency are essential. With a wide range of possible configurations, these exchangers can be tailored to various needs, ensuring dependable performance even under demanding operating conditions.

Main applications include:
• Agriculture and forestry
• Mobile and stationary cranes
• Industrial vehicles
• Municipal vehicles
• Construction machinery
• Material handling equipment
• Others on request
